Home > Products > Power electronics capacitors > DC-Link capacitor

DC-link capacitor(Cylindrical plastic case)

HS2 series is suitable for the DC-link circuit in electric locomotive, welder,motor driver system, power supply and other kinds of power electronic equipment, and plays a role in voltage support, DC filter and so on.

Product characteristics：

●   Long lifetime
●   High ripple current handing capability
●   Low ESR
●   High insulation resistance, low leakage current
●   Low stray inductance, good heat dissipation
●   Strong self-healing capacity
●   Flame retardant plastic case, epoxy resin, dry-type

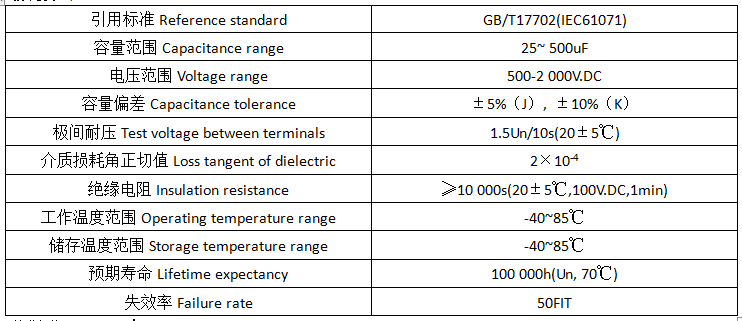

Specifications:

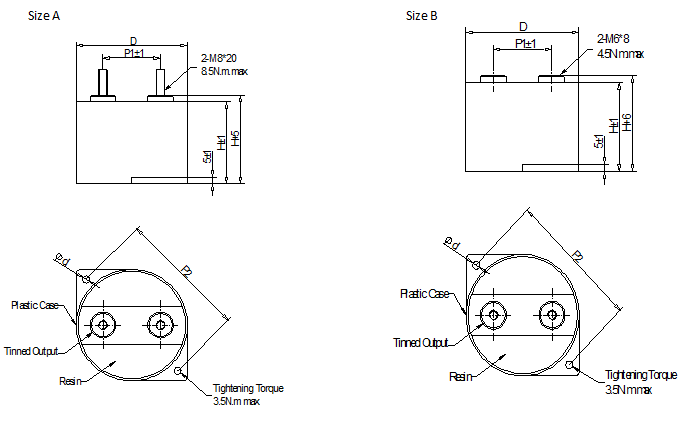

Outline drawing(mm):

If Need more technical data,please contact us.
