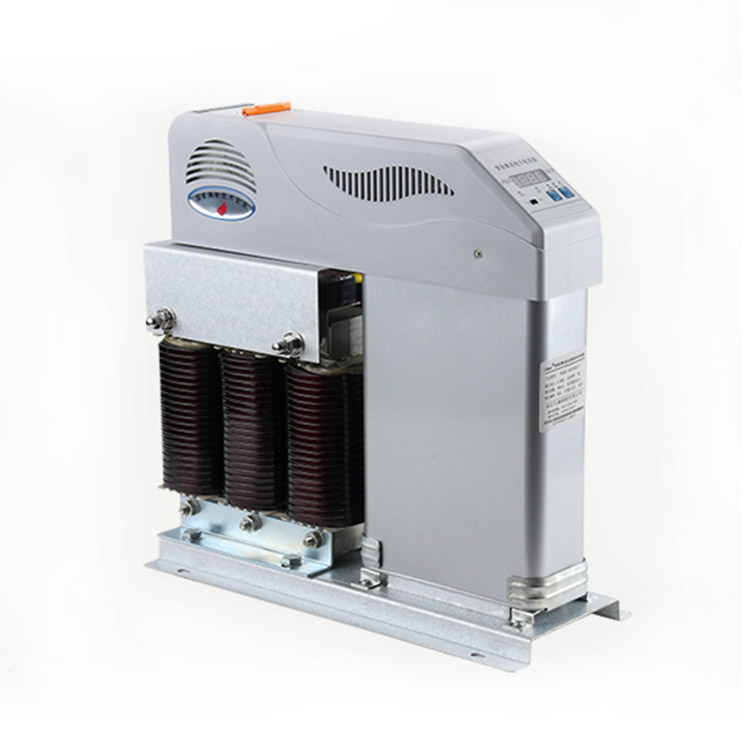

Smart Low Voltage Power Capacitor

Smart Low voltage power capacitor


Low voltage intelligent power capacitor is used in low voltage distribution network, such as construction, industrial construction, city power grids, rural power grids, etc. Its can stable voltage, reduce the line loss, improve power factor and energy conservation. Changed the traditional reactive compensation device which is bulky and heavy structural model, and so more cost savings, easy to maintain.

(1)   Environment condition                                                 (2) Protection deviation

       Ambient temperature: -35~65°C (-25~45°C )                         Voltage: ≤0.5%

       Relative humidity: 40°C ,20-90%                                            Current: ≤1.0%

       Atmospheric pressure: 79.5~106.0Kpa                                  Temperature: ±1°C

                                                                                                      Time: ±0.01s
(3) Power condition                                                              (4) parameters

     Rated voltage: ~200V or ~380V                                               Deviation:The minimum capacity of 75%

     Allowable tolerance: ±20%                                                       Time of capacitor switch:10s

     Voltage waveform: The sine wave,                                           Capacity: one (20+20)kvar

     the total rate is not more than 5%                                             more≤24pcs

     Frequency: 48.5~51.5Hz

     Power dissipation: <0.5w(cut off capacitor)

                                <1w(input capacitor)

(5) Safety requirements                                                       (6)Reliability parameters

      Meet “the use of technical conditions                                     Control accuracy: 100%

      DL/T842-2003 low voltage Shunt                                           Allowed number of switch:1million times

      capacitor device ”                                                                   Capacitor run time decay rate: ≤0.1%/10000

                                                                                                     Fault rate annual: 0.1%
(7)Measurement deviation

Voltage: ≤0.5%(during 80%~120% of rated voltage)

Current: ≤1.0%(during5%~20% of rated current)

                  ≤0.5%(during20%~120% of rated current)

Power factor: ±0.01


NameStructureCapacitance (KVAR)TypeDimension(mm)L*W*H
Intelligent power capacitor Three phase (triangle) 15*1 HZC- (triangle) /15-1 350*110*300
20*1 HZC- (triangle) /20-1 350*110*300
30*1 HZC- (triangle) /30-1 350*110*300
40*1 HZC- (triangle) /40-1 350*110*300
7.5*2 HZC- (triangle) /15-2 350*110*340
10*2 HZC- (triangle) /20-2 350*110*300
15*2 HZC- (triangle) /30-2 350*110*300
20*2 HZC- (triangle) /40-2 350*110*340
Intelligent power capacitor Single phase Y 3.3*3 HZC-Y/10 350*110*300
5*3 HZC-Y/15 350*110*300
6.67*3 HZC-Y/20 350*110*300
8.33*3 HZC-Y/25 350*110*340
Special requirement can be made at the request of customers.
