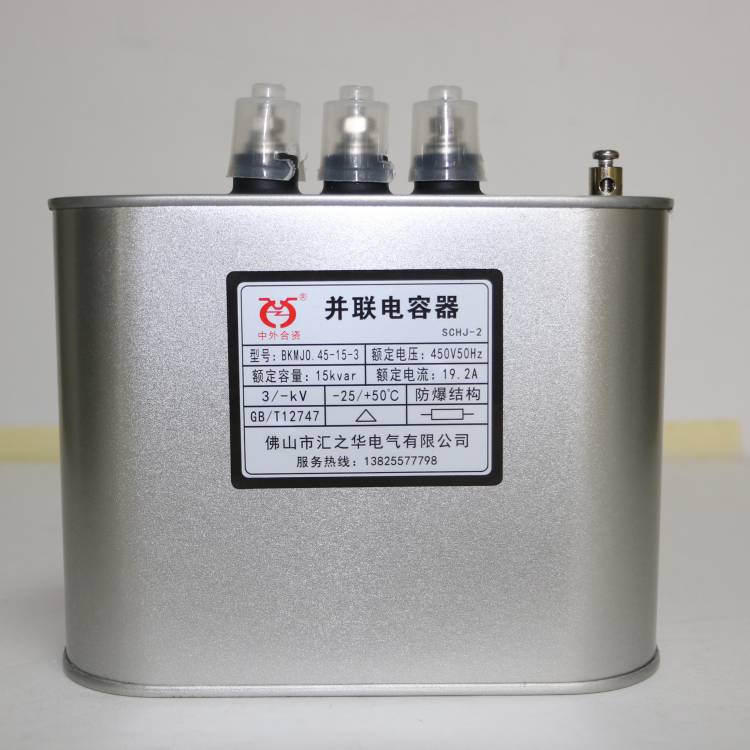

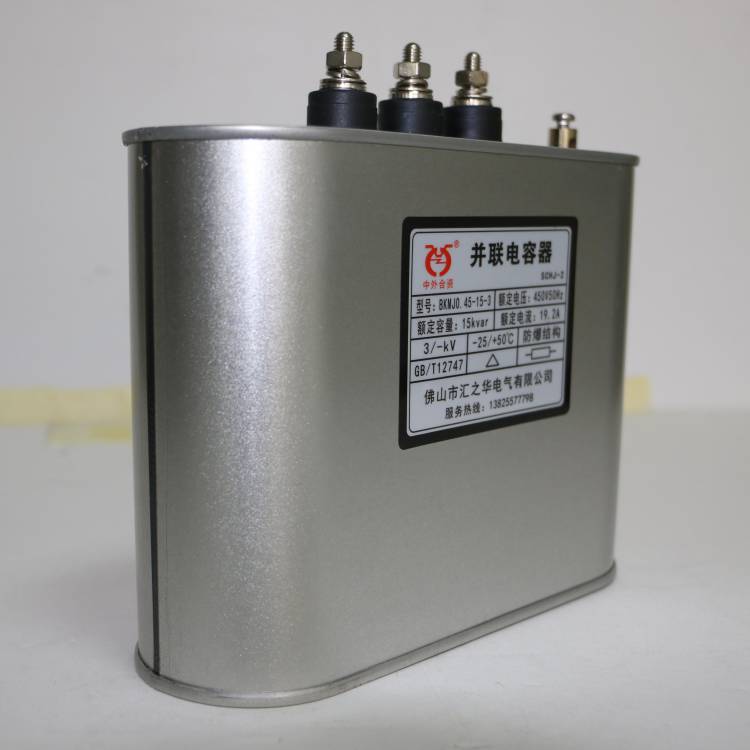

450V 50Kvar capacitor bank 3 phase kvar power capacitor

450V 50Kvar capacitor bank 3 phase kvar power capacitor


BKMJ series power capacitor quality is reliable, stock is large, and the model is complete. Due to the introduction of foreign advanced equipment and technology, product stability is excellent, impact resistance. In addition products used in the self-healing material of the metal film, to ensure that the capacity of the capacitor overload, loss of small, high insulation resistance.


Through the process of the production process of strict control to make the product of the rated service life long, excellent self-healing performance. The built-in high temperature insulating colloid filling is safe and reliable. At present BKMJ series power capacitor has passed the ISO9001 quality management system certification, CCC product certification,  quality is absolutely guaranteed.


BKMJ series power capacitor is widely used, and can be used in all kinds of reactive power compensation device and capacitor cabinet. improve power factor and filter control.


Product parameters

prouduct namethree phase power factor correction capacitor
rated frequency50/60Hz
rated voltage

250V~690V

range of capacity

1Kvar~50Kvar

capacity deviation

+/-5%


Feartures:

1.samll voltage

2.low loss

3.safety

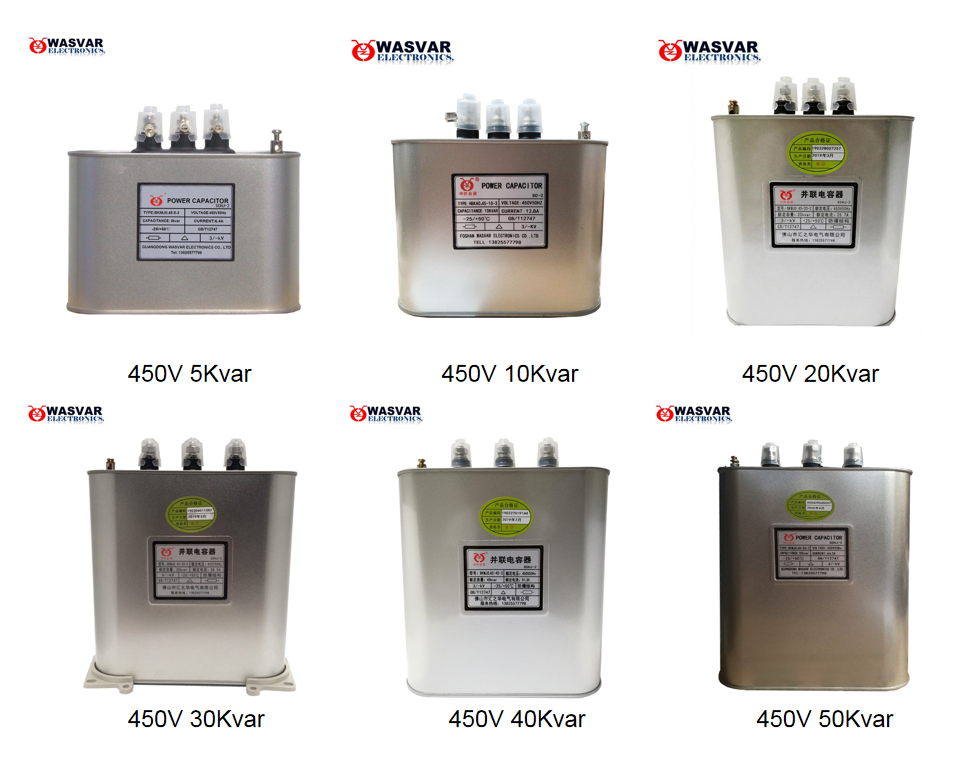

Pictures of 450V 5Kvar 10Kvar 20Kvar 30Kvar 40Kvar 50Kvar oval power capacitor(three phase)

50kavr power capacitor.jpg

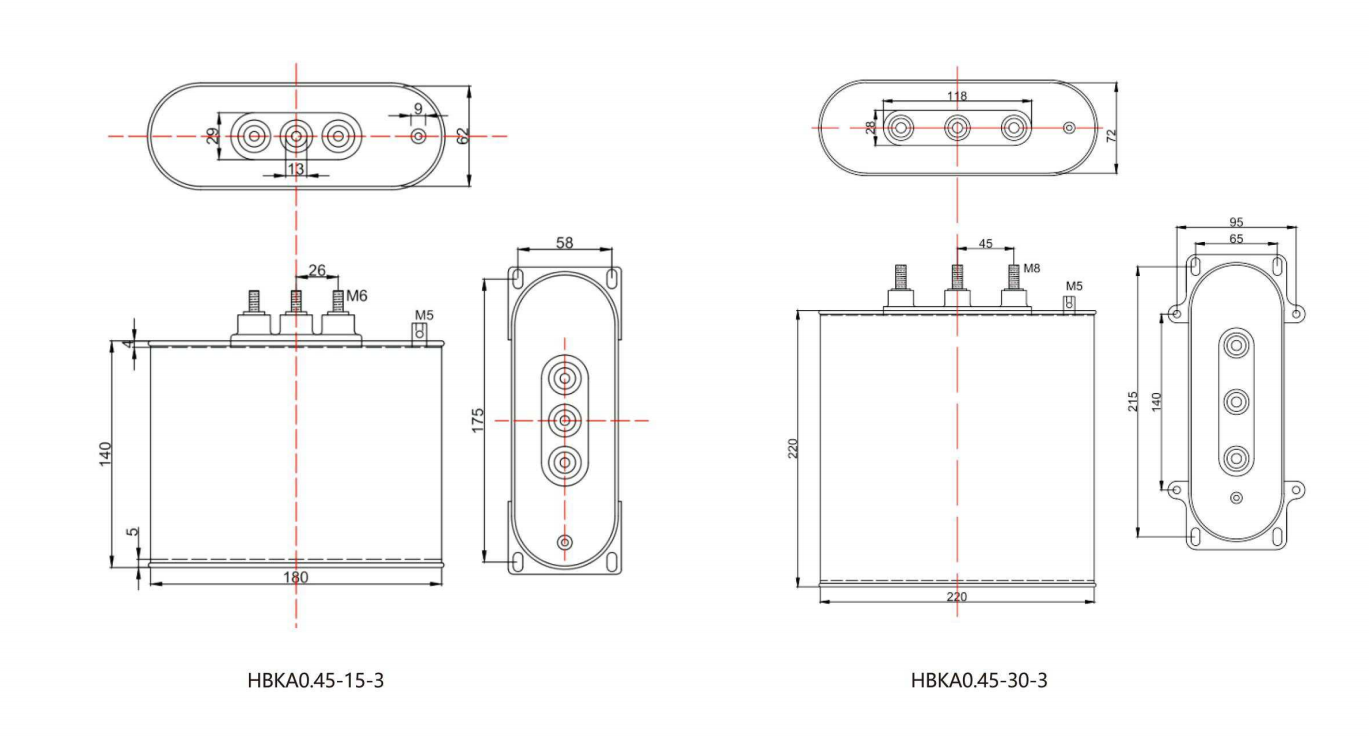

The size of 450V 3 phase kvar power capacitor

Rated Voltage

Rated capacitance(Kvar)Model
Rated capacity(uF)Rated current
Dimension/Installation size
450V5KvarBKMJ0.45-5-378
6.4180*62*120/175*58
450V7.5KvarBKMJ0.45-7.5-31179.6180*62*120/175*58
450V10KvarBKMJ0.45-10-315712.8180*62*120/175*58
450V15KvarBKMJ0.45-15-323519.2180*62*140/175*58
450V20KvarBKMJ0.45-20-331425.7180*62*200/175*58
450V25Kvar
BKMJ0.45-25-339332.1220*72*200/215*65
450V30KvarBKMJ0.45-30-3471
38.5220*72*220/215*65
450V40KvarBKMJ0.45-40-3
62951.3220*72*220/215*65
450V50KvarBKMJ0.45-50-378664.2220*72*260/215*65

Diamension above are for reference only, Actual diamension depend on customer's require.

450V three phase capacitor dimension.jpg
