CBB65、CBB6-5
The feature is small in dimension,high capacitance,low dissipation factor,good self-healing character,antiexplosive device and safety reliability.
The capacitors are applied to the compressor for air-conditioner.

1.Technical  Index

TYPE	CBB6-5
Climatic category	40/70/21
Rated voltage	250VAC~450VAC
Capacitance range	10uF~60uF
Test voltage VAC	T-T:1.5Un              T-C:≥2000VAC 2s.60s         2.0Un
Insulation resistance	T-T:≥3000MΩ.uF     T-C:≥1000mΩ
Dissiipation factor	Tan δ≤0.002(50/60Hz)
Safety test	IEC60252  GB/T3667
Life level	B

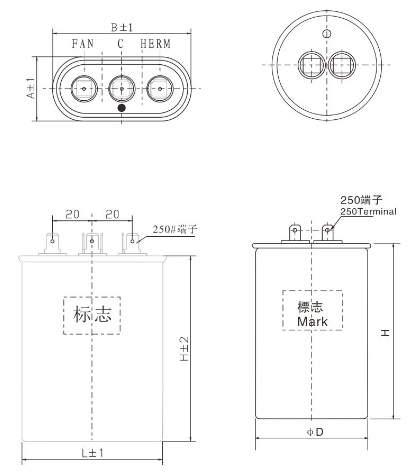

2.Outline Drawing
